Linear Motor LSMU Ironless Core Series

Ironless Core Technology丨No Cogging Effect丨Patented Technology丨Compact
Winding Design, High Thrust Density丨High Continuous and Peak Thrust丨Optional
Hall Sensor

Linear motor selection rules

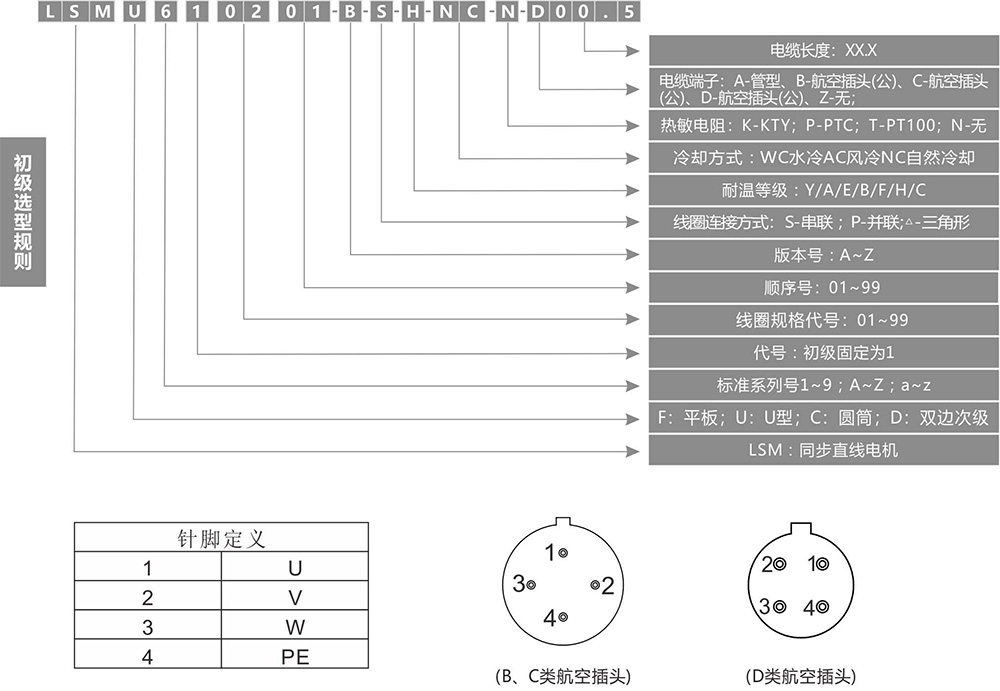

Primary selection rules:

Naming example, LSMU610201B-S-H-NC-N-D00.5 means: U-type linear synchronous
motors of the 6th standard series of 02 coils, the first version of the B
version of the series primary, and the temperature resistance class is H. The
primary can be used as the primary of a linear motor.

And the temperature resistance class H, using natural cooling method, no
thermistor, cable length 0.5 metres, the outlet end of the cable for the D class
aviation plug.

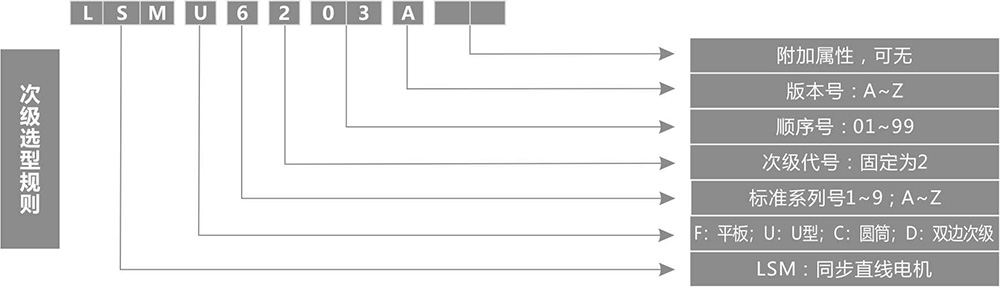

次级选型规则：
