Brushless DC Motor 37 Series

Mainly used for: air purifier, automation equipment, cross-flow fan, etc.
Note: The size depends on the actual requirements of customers.
Motor performance characteristics:
1、Motor with high efficiency, low temperature rise, can work continuously for 24 hours.
2、Motor can run at constant speed.
3、Motor speed regulation is flexible, can easily achieve multi-function control.
4、The motor is small in size, long in life and low in noise.
  • Performance Parameter

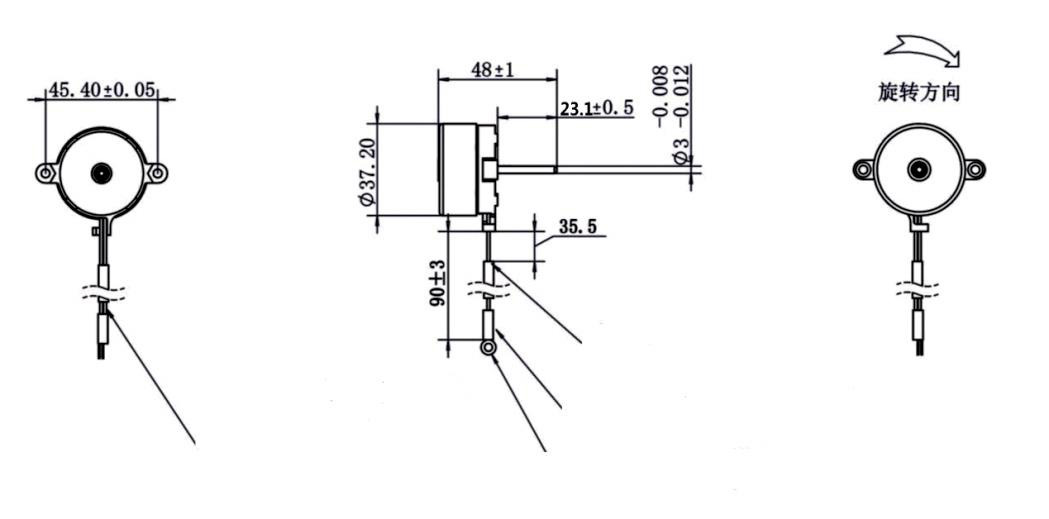

  • Outline Plan
  • Reference Table

1.DC Voltage:12V-24V

2.Winding structure: single-phase external rotor

3.Number of poles: 2 poles

4.Motor can be equipped with: ball bearing or oil bearing.

5.Motor steering can be CW and CCW.

6. Motor output power: 0.5-10W

7. Motor output speed: 500-5000 RPM
